高速三頭激光落料線

High-speed three heads laser blanking line

一、產品介紹Product introduction

高速三頭激光落料線由上料臺車、開卷機、清洗機、校平機、緩沖活套、伺服送料機、三頭激光切割裝置、帶式動態切割平臺、碼垛裝置、廢料處理系統、液壓氣動系統及電氣控制系統組成，通過系統控制的激光切割頭在激光切割平臺上進行的三維運動切割，代替壓力機及模具，實現對金屬帶料的自動落料 。

High-speed three heads laser blanking line consists of coil car, uncoiler, washing machine, leveler, loop, servo feeder, three heads laser cutting device, dynamic belt cutting platform, stacking device, waste disposal system, hydraulic pneumatic system and electrical control system. The laser cutting head controlled by the system is in the laser. The three-dimensional motion cutting on the cutting platform replaces the press and die to realize the automatic blanking of metal strip.

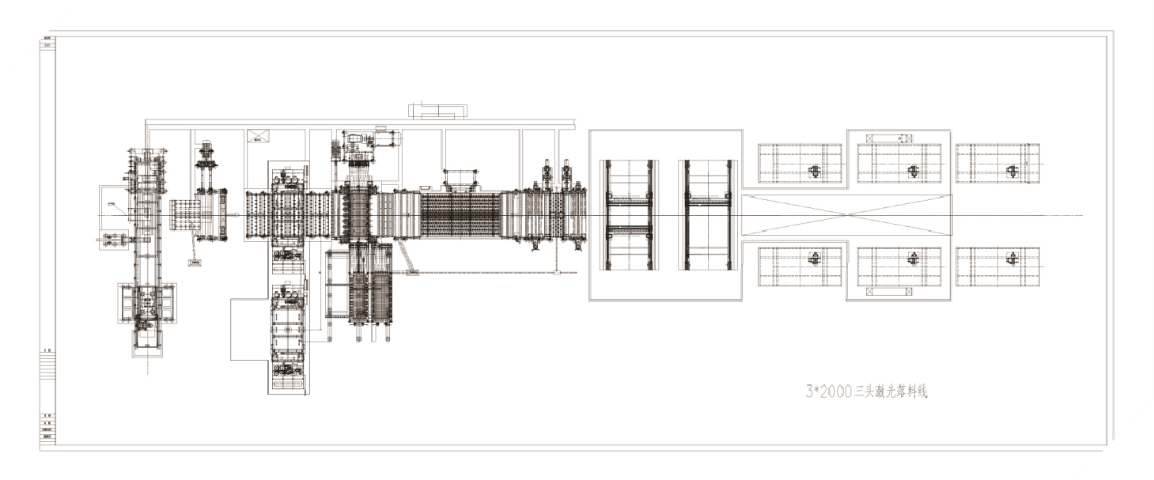

設備示意圖The drawing of equipment

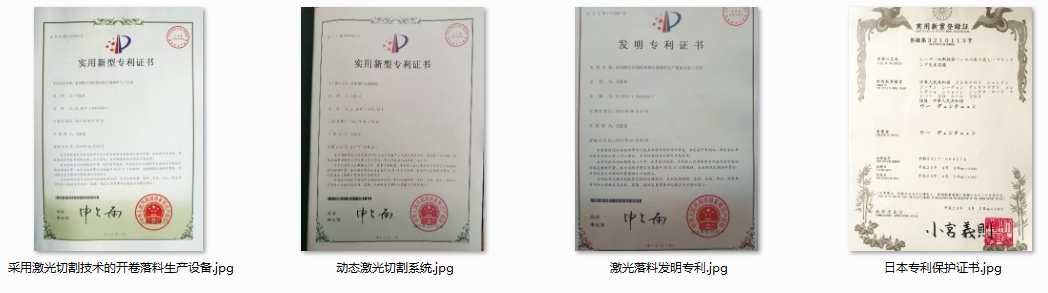

二、專利證書Patent certificate：

       我公司于2012年開始研發新型的激光切割落料設備，取得了三項國家實用新型專利，一項國家發明專利，并且申報了日本、歐盟和美國的專利保護，我們制造的設備已經在多個用戶投產了使用。

       Our company began to develop the new laser blanking line in 2012, and has obtained three national utility model patents, one national invention patent, and declared the patent protection of Japan, the European Union and the United States. The equipment we manufactured has been put into use by many users.

三、產品特點Product characteristics

l 設備投資低：與現有大型落料生產設備相比，激光切割落料生產線設備質量小，能耗低，且無需復雜的設備基礎，大大降低了前期投資和后期維護使用成本。

Low equipment investment:

compared with the traditional blanking line, the laser-cutting blanking line has small weight, low energy consumption, and no complex equipment foundation, which greatly reduces the pre-investment and post-maintenance cost.

l 產出效率高：與現有激光切割設備相比，激光切割落料生產線使用卷料進行坯料生產，代替了卷材先切片再在設備上切割的生產工藝，提高了生產效率。

High output efficiency:

compared with the existing laser cutting equipment, the laser-cutting blanking production line uses the coil for blank production, instead of the coil slicing first and then cutting on the equipment, which improves the production efficiency.

l 靈活性高：無需制造模具，采用先進的排樣軟件及控制系統，產品規格形狀轉換迅速，適合各種批量產品生產。

High flexibility:

Flexibility: No need to manufacture dies, advanced layout software and control system are adopted. The product specifications and shapes change quickly, which is suitable for various batch production.

l  維護成本低：采用10萬小時免維護的光纖激光發生器，性能可靠；同時激光切割速度快，不銹鋼的切割速度可達到每分鐘50米/分鐘（厚度1mm時），可快速完成切割下料。

Low maintenance cost:

Use the 100,000-hour maintenance-free laser generater, reliable performance; the laser cutting speed is fast, the cutting speed of stainless steel can reach 50 meters per minute (when the thickness is 1 mm), and the blanking can be completed quickly.

l  產品品質高：采用高精度的校平機、高精度的送料及切割系統、先進的自動碼垛系統等，可適應各種金屬材料的零件胚料生產。

High quality:

Advanced high-precision leveling machine, high-precision feeding, cutting system, and automatic stacker system, etc., can be adapted to the production of various metal parts embryo.

l 使用成本低：由于不需要模具進行沖壓，降低了模具制造和維護費用；同時設備沒有使用大型壓力機，生產能耗大大降低，也降低了環境噪音。

Low using cost:

It reduces the mould manufacturing and maintenance costs. Meanwhile, without using large press, production energy consumption is greatly reduced, also reduces the ambient noise.

l 材料利用率高：因?yàn)槭褂镁砹线M(jìn)行連續生產，不會產生單片時料頭料尾的損耗；同時設備采用優化排樣，將各種形狀的零件組合進行無搭邊切割，減少了材料損耗，提高了材料利用率。

High material utilization:

Because continuous production with coil material will not produce the loss of material head and tail when single piece is produced; at the same time, the equipment adopts optimized layout to cut various shapes of parts without lapping edge, which reduces material loss and improves material utilization rate.

四、現場照片Scene pictures

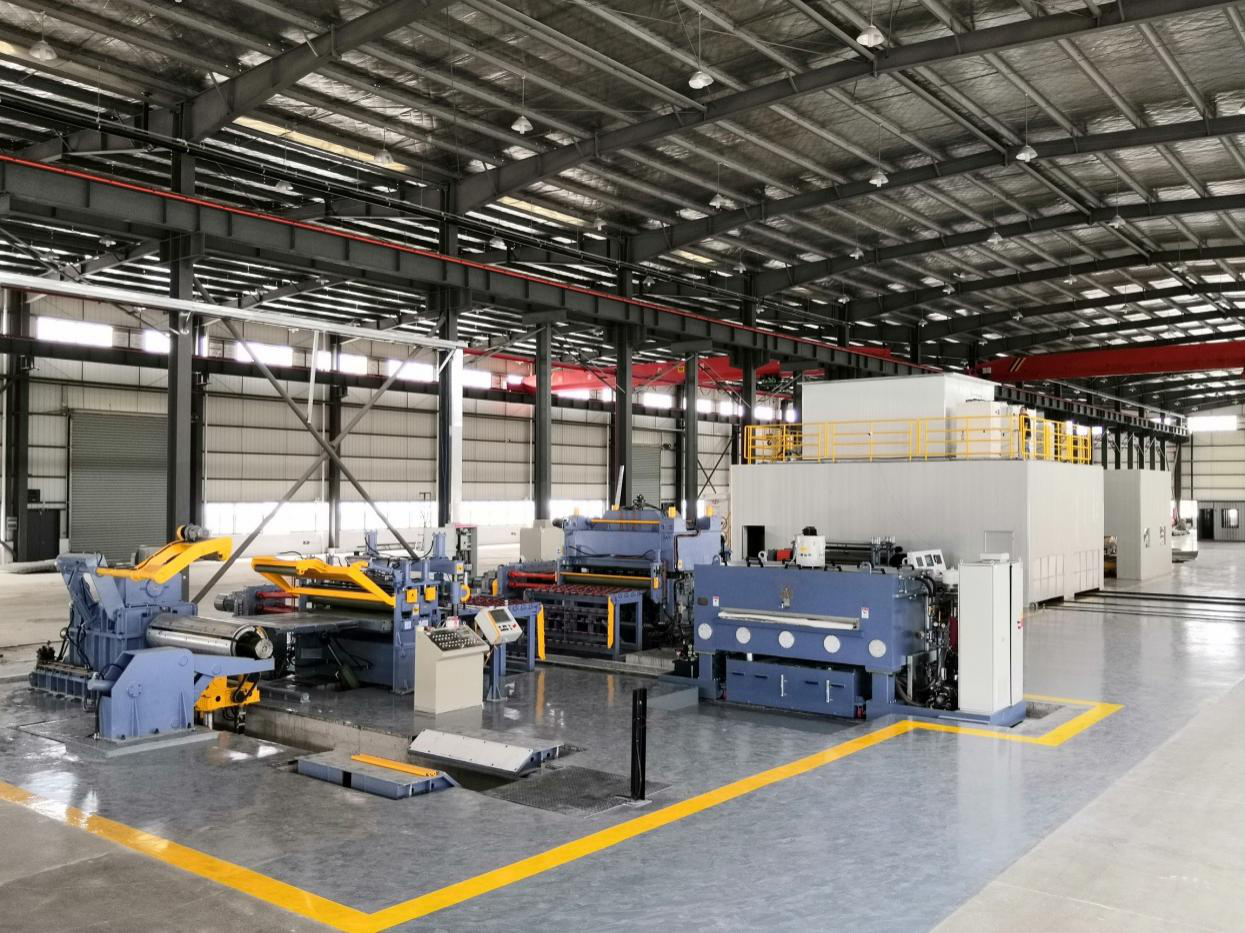

 0設備全景Equipment panoramic

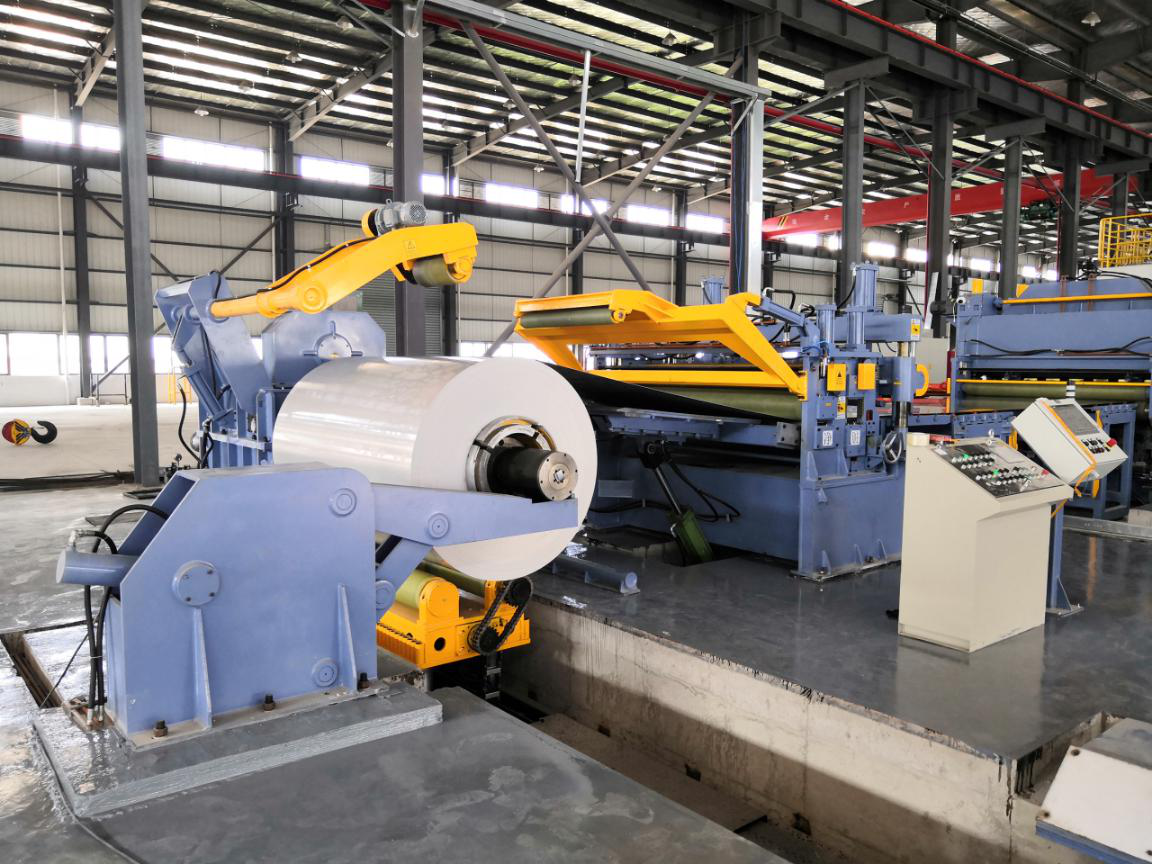

1上料系統Coil System

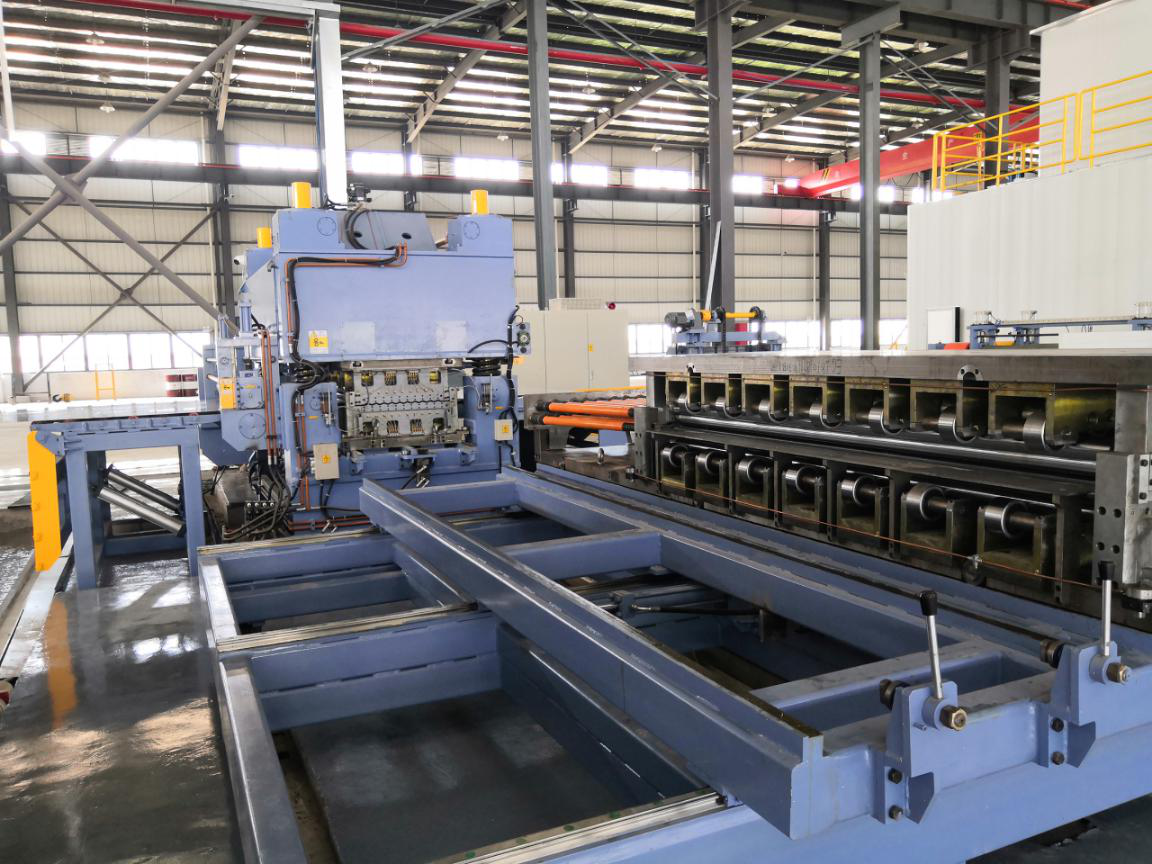

 2校平機快換輥組Quick Changing Roll Unit of Leveling Machine

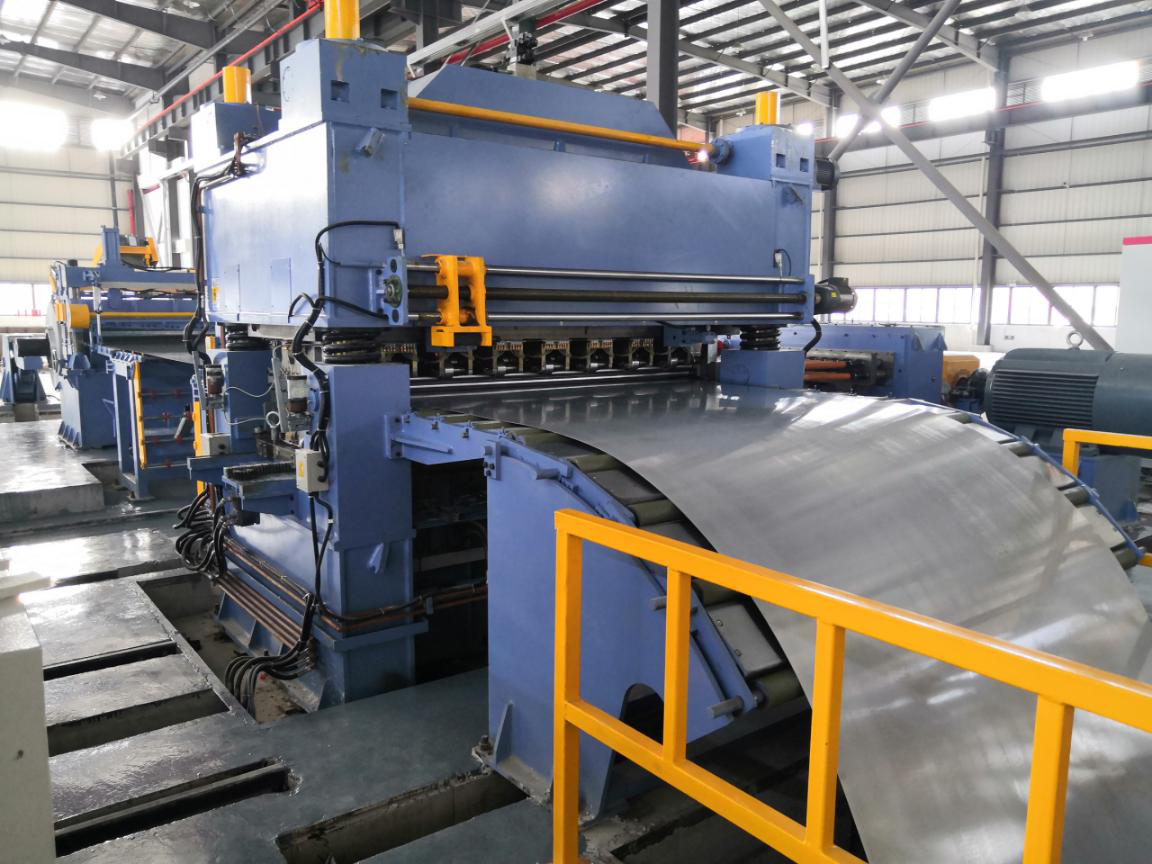

 3六重式校平機6-layer Type Leveller

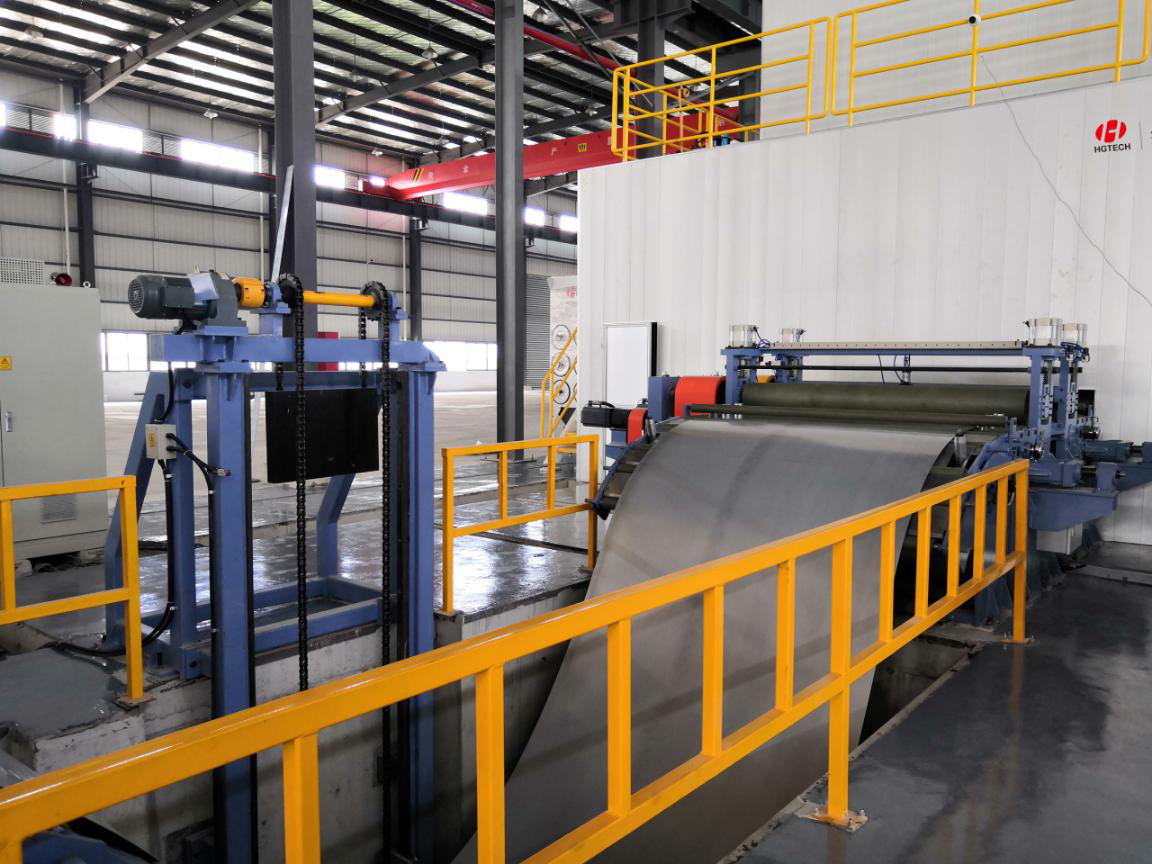

 4活套及送料裝置Looper and Feeder

 5三頭激光切割系統Three Laser Heads Laser Cutting System

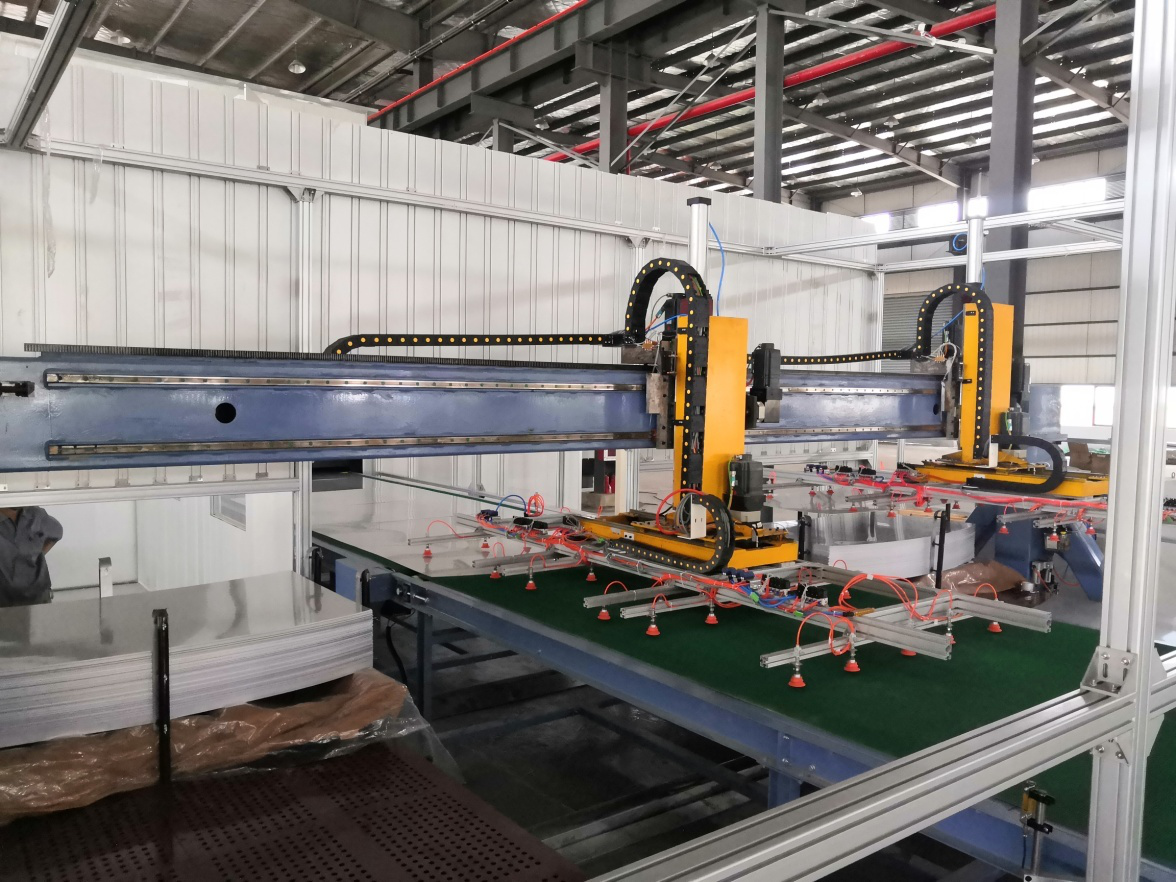

6碼垛系統Stacking System

五、設備應用前景Application Prospect of Equipment

l 符合社會節能減排的發展規劃。

l It conforms to the development plan of social energy saving and emission reduction.

l 提高毛坯質量，同時方便企業物料管理，減少物料損耗。

l Improve the quality of the embryo material, at the same time convenient enterprise material management, reduce material loss.

?l 不需要模具投入，設備柔性好，可最大化的滿足用戶的產品需求。

l It does not need die input and the equipment has good flexibility, which can maximize the satisfaction of user's product needs.

l 該項目可提高材料利用率達5％－10％，能夠帶來巨大的經濟效益。

l This project can increase the utilization rate of materials by 3%-7%, which can bring huge economic benefits.

l 采用自動化生產，可以大量降低人力，降低生產成本，并保證了勞動者的安全。

l The use of automated production can greatly reduce manpower, reduce production costs, and ensure the safety of workers.

l 該項目即可替代開卷落料線，也是現有激光切割設備的升級產品，設備性價比高，可很快產生投資效益。

l This project can replace the uncoiling blanking line and is also an upgraded product of the existing laser cutting equipment. The equipment has a high cost performance ratio and can quickly produce investment benefits.
